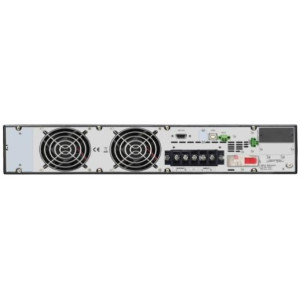

APC Easy UPS On-Line, 6kVA/6kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/O rail kit - SRV6KRIL

Specifications:

Main

• Main Input Voltage: 230 V AC 1 phase

• Product or component type: Uninterruptible power supply (UPS)

• Other Input Voltage: 220...240 V

• Main Output Voltage: 230 V AC 1 phase

• Other Output Voltage: 220/240 V

• Rated power in W: 6000 W

• Rated power in VA: 6000 VA

• Output connector type: Hard wire 3-wire (1P + N + E) for 1 zone(s)

• Battery type: Lead-acid battery

• Provided equipment: 1 USB cable, 1 RS-232 configuration cable, 2 rack mounting brackets, 1 external battery pack, 1 battery cable, user manual

• Range of product: Easy UPS On-Line


• UPS connectivity: Serial port, USB port, Available expansion slot

• Mounting mode: Rack-mounted with included kit

Batteries & Runtime

• Number of battery filled slots: 0

• Number of battery free slots: 0

• Battery recharge time: 5 h

• Number of battery replacement quantity: 0

• Battery voltage: 240 V

• Battery charger power: 1170 W rated

• Battery life: 3…5 year(s)

• Extended runtime: 1

General

• Number of power module free slots: 0

• Redundant: No

Physical

• Colour: Black (RAL 7010)

• Height: 219.5 mm

• Width: 438 mm

• Depth: 615 mm

• Net weight: 78 kg

• Mounting location: Front

• Mounting preference: Lower

• Mounting mode: Rack-mounted with kit

• USB compatible: Yes

• Mounting position: Horizontal

Input

• Network frequency: 40...70 Hz auto-sensing

• Number of input connectors: 1 hard wire 3-wire (1P + N + E)

Output

• Maximum configurable power in W: 6000 W

• Harmonic distortion: 1 %

• Output frequency: 50/60 Hz +/- 3 Hz sync to mains

• Crest factor: 3 : 1

• UPS type: Double conversion online

• Wave type: Sine wave

• Bypass type: Internal bypass (automatic and manual)

• Maximum configurable power in VA: 6000 VA

Conformance

• Product certifications: CE, UKCA, EAC, TISI

• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Communications & Management

• Free slots: 1

• Control panel: Multifunction LCD status and control console

• Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

• Emergency power off: Yes



Surge Protection and Filtering

• Surge energy rate: 600 J

Packing Units

• Unit Type of Package 1: PCE

• Number of Units in Package 1: 1

• Package 1 Height: 49 cm

• Package 1 Width: 87 cm

• Package 1 Length: 60 cm

• Package 1 Weight: 88 kg
