Screen : ≤30"
Capacity : 14–30 lbs ; 6.4–13.6 kg *
Lift : 5" ; 12.7 cm
Tilt : 80° **
Pan : 360°
Rotation : 90° †
Vesa : MIS-D/E/F ‡
Warranty : 10 years

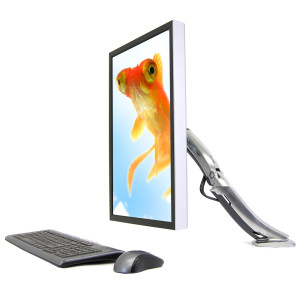

Description: MX Desk Mount LCD Monitor Arm (polished aluminum)

Includes desk clamp and grommet mount

Mounting Options: Desk clamp attaches to surface edge 2.6" (66 mm) thick; grommet mount attaches through surface holes .31" to 2.0" (8 to 51 mm) wide and up to 3" (80 mm) thick
Weight Capacity: 14 to 30 lbs (6.3 to 13.6 kg)

* Monitor depth greater than 4" (102 mm) may diminish capacity. Contact Ergotron for more information

Pans at base 180°; rotates at extension 360°; pans at monitor 180°

** Monitor tilts 75° up and 5° down

Note: Motion range may be limited when using larger displays and/or by the position of the VESA hole pattern on the back of the display

Portrait/landscape rotation includes position lock

† Portrait mode is incompatible with 30" displays

‡ Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm). For displays that use a 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately

Internal cable management

Product Weight: 7.7 lbs (3.5 kg)
