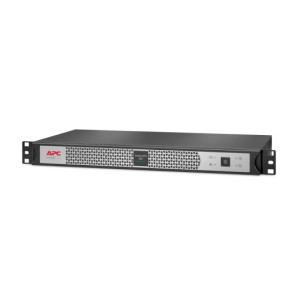

APC Smart-UPS Line Interactive 500VA Lithium-ion SCL500RMI1UNC SCL500RMI1UNC

Specifications:

Main

• Product or component type: Uninterruptible power supply (UPS)

Complementary

• Mounting mode: Rack-mounted

• UPS connectivity: Serial port, USB port, Embedded network management card 3

• Battery type: Li-Ion (Lithium-Ion) internal included

Batteries & Runtime

• Battery type: Li-Ion (Lithium-Ion)

• Extended runtime: 0

• Battery design life: 8…10 year(s)

• Battery charger power: 10 W rated

General

• Provided equipment: Installation guide, Rack mounting support rails, USB cable

• Redundant: No

Physical

• Number of rack unit: 1U

• Colour: Black with silver front bezel

• Height: 44 mm

• Width: 432 mm

• Depth: 232 mm

• Net weight: 4.1 kg

• Mounting preference: No preference

• Mounting mode: Rack-mounted

• USB compatible: Yes

Input

• Main Input Voltage: 230 V AC 1 phase

• Input Connection Type: IEC 60320 C14

• Input protection type: Circuit breaker

• Input voltage limits: 208...253 V

• Network frequency: 50/60 Hz +/- 3 Hz auto sensing

Output

• Main Output Voltage: 230 V AC 1 phase

• Rated power in W: 400 W

• Rated power in VA: 500 VA

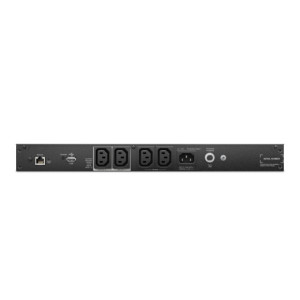

• output connection type: 4 IEC 60320 C13

• Harmonic distortion: Less than 5 %

• Maximum configurable power in VA: 500 VA

• Maximum configurable power in W: 400 W

• Transfer time: 6 ms typical : 10 ms maximum

• UPS type: Line interactive

• Wave type: Sine wave

• Output frequency: 50/60 Hz +/- 3 Hz sync to mains

Conformance

• Product certifications: C-Tick, CE, EAC, UK PSTI

• Equipment protection policy: Lifetime : $150000

• Standards: EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Communications & Management

• Control panel: LED status display with on line : on battery : replace battery and building wiring fault

• Free slots: 0

• Preinstalled device: Network management card 3

• Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

• Surge energy rate: 510 J

• Noise suppression: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units

• Unit Type of Package 1: PCE

• Number of Units in Package 1: 1

• Package 1 Height: 16.8 cm

• Package 1 Width: 33.7 cm

• Package 1 Length: 59 cm

• Package 1 Weight: 6.49 kg
