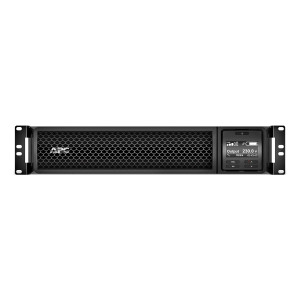

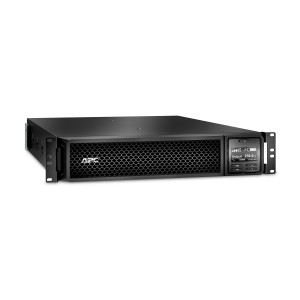

APC Smart-UPS On-Line 2200VA Rackmount 2U 230V SRT2200RMXLI apc SRT2200RMXLI

Specifications:
Main

• Main Input Voltage: 230 V AC 1 phase

• Product or component type: Uninterruptible power supply (UPS)

• Other Input Voltage: 220 V, 240 V

• Main Output Voltage: 230 V 1 phase

• Other Output Voltage: 220 V, 240 V

• Rated power in W: 1980 W

• Rated power in VA: 2200 VA

• Input Connection Type: BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P

• output connection type: 8 IEC 60320 C13, 2 IEC Jumpers, 2 IEC 60320 C19

• Number of rack unit: 2U

• Cable length: 2.4 m

• Number of cables: 1

• Provided equipment: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, USB cable, Warranty card

• Range of product: Smart-UPS On-Line

Complementary

• Battery type: Lead-acid internal

• UPS connectivity: Serial port, USB port

• Mounting mode: Rack-mounted with kit sold separately

Batteries & Runtime

• Battery type: Lead-acid battery

• Battery voltage: 72 V

• Extended runtime: 1

• Number of battery filled slots: 1

• Number of battery free slots: 0

• Battery recharge time: 3 h

• Number of battery replacement quantity: 1

• Battery life: 3…5 year(s)

• Replacement battery: APCRBC141

• Battery charger power: 122 W rated

General

• Number of power module: 1400

• Number of power module filled slots: 0

• Number of power module free slots: 0

• product web sub-family: High density

• Redundant: No

• UPS type: Double conversion online

Physical

• Colour: Black

• Height: 85 mm

• Width: 432 mm

• Depth: 584 mm

• Net weight: 25 kg

• Mounting location: Front

• Mounting preference: Lower

• Mounting mode: Rack-mounted

• Two post mountable: 0

• USB compatible: Yes

• Mounting position: Horizontal

Input

• Input voltage limits: 100...275 V adjustable (half load)

• Network frequency: 40...70 Hz auto-sensing

Output

• Bypass type: Built-in bypass

• Crest factor: 3 : 1

• Harmonic distortion: Less than 2 %

• Maximum configurable power in VA: 2200 VA

• Maximum configurable power in W: 1980 W

• Wave type: Sine wave

• Output frequency: 50/60 Hz +/- 3 Hz sync to mains

Conformance

• Product certifications: CE, EAC, RCM, VDE, UK PSTI

• Marking: CE Mark

• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Communications & Management

• Emergency power off: Yes

• Free slots: 1

• Alarm: Audible and visible alarms : prioritized by severity

Surge Protection and Filtering

• Surge energy rate: 340 J

Packing Units

• Unit Type of Package 1: PCE

• Number of Units in Package 1: 1

• Package 1 Height: 24.600 cm

• Package 1 Width: 59.900 cm

• Package 1 Length: 81.000 cm

• Package 1 Weight: 34.019 kg
