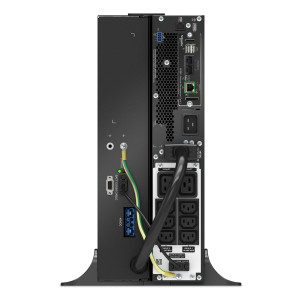

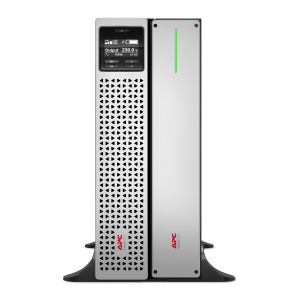

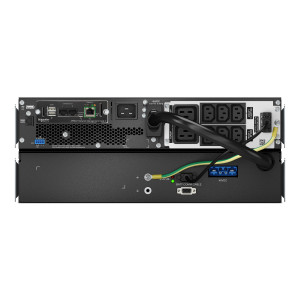

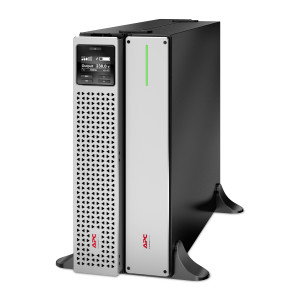

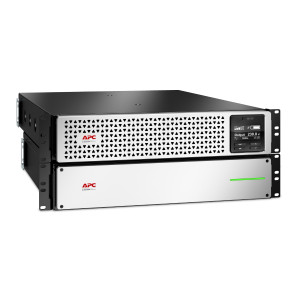

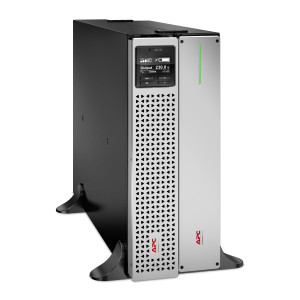

APC Smart-UPS On-Line 3kVA Lithium-ion Rackmount 4U SRTL3000RM4UXLI-NC apc SRTL3000RM4UXLI-NC

APC Smart-UPS On-Line, 3kVA, Lithium-ion, Rackmount 4U, 230V, 6x C13+2x C19 IEC outlets, Network Card, Extended long runtime, Rail kit included SRTL3000RM4UXLI-NC

Specifications:
Main

• Main Input Voltage: 230 V AC 1 phase

• Product or component type: Uninterruptible power supply (UPS)

• Other Input Voltage: 220 V

• Main Output Voltage: 230 V AC 1 phase

• Other Output Voltage: 220 V

• Rated power in W: 2700 W

• Rated power in VA: 3000 VA

• Input Connection Type: IEC 60320 C20

• output connection type: 6 IEC 60320 C13

• Number of rack unit: 4U

• Cable length: 1.8 m

• Number of cables: 1

• Range of product: Smart-UPS On-Line

Complementary

• Battery type: Li-Ion (Lithium-Ion) internal included

• UPS connectivity: Serial port, USB port, Pre-installed network management card 3

• Mounting mode: Rack-mounted with included kit

Batteries & Runtime

• Battery type: Li-Ion (Lithium-Ion)

• Battery voltage: 48 V

• Extended runtime: 1

• Number of battery filled slots: 0

• Number of battery free slots: 0

• Battery life: 5…10 year(s)

• Battery charger power: 158 W rated

General

• Number of power module filled slots: 0

• Number of power module free slots: 0

• product web sub-family: Lithium-Ion

• Redundant: No

• UPS type: Double conversion online

Physical

• Colour: Black with silver front bezel

• Height: 171 mm

• Width: 432 mm

• Depth: 639 mm

• Net weight: 43.7 kg

• Mounting preference: No preference

• Mounting mode: Rack-mounted with kit

• Two post mountable: 0

• USB compatible: Yes

• Mounting position: Horizontal, Vertical

Input

• Input voltage limits: 160...275 V

• Network frequency: 40...70 Hz auto-sensing

Output

• Bypass type: Built-in bypass

• Crest factor: 3 : 1

• Harmonic distortion: Less than 2 %

• Maximum configurable power in VA: 3000 VA

• Maximum configurable power in W: 2700 W

• Wave type: Sine wave

• Output frequency: 50/60 Hz +/- 3 Hz sync to mains

Conformance

• Product certifications: CE, UK PSTI

• Marking: CE Mark

Communications & Management

• Emergency power off: Yes

• Free slots: 0

• Preinstalled device: Network management card 3 with environmental monitoring

• Alarm: Audible and visible alarms : prioritized by severity

Surge Protection and Filtering

• Surge energy rate: 432 J

Packing Units

• Unit Type of Package 1: PCE

• Number of Units in Package 1: 1

• Package 1 Height: 24.5 cm

• Package 1 Width: 60 cm

• Package 1 Length: 81 cm

• Package 1 Weight: 56 kg
