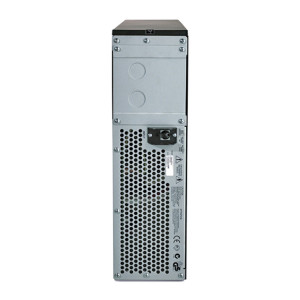

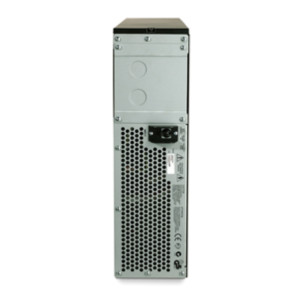

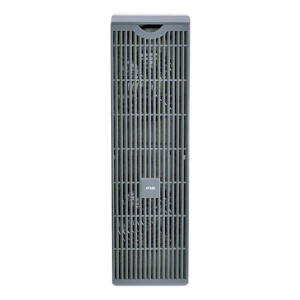

APC Smart-UPS RT Isolation Transformer 5000VA 230V In/Out SURT002 apc SURT002

Specifications:

Main

• Main Input Voltage: 230 V

• Product or component type: Transformer

• Main Output Voltage: 230 V

• Other Output Voltage: 220 V, 240 V

• Output connector type: Hard wire 3-wire (H N + E) for 1 zone(s)

• Number of rack unit: 3U

• Number of cables: 1

• Provided equipment: Installation guide, Mounting hardware, User manual

• Range of product: Smart-UPS Accessories

Physical

• Colour: Black

• Height: 130 mm

• Width: 432 mm

• Depth: 660 mm

• Net weight: 56.82 kg

• Mounting location: Front

• Mounting preference: Lower

• Mounting mode: Rack-mounted with kit

Input

• Input current limits: 30 A

• Load capacity: 5000 VA

• Network frequency: 50/60 Hz

• Number of input connectors: 1 hard wire 3-wire (1P + N + E)

• Conformance

• Product certifications: C-Tick, CE

• Standards: EN 50091-1, EN 55022 class B, EN 55024, EN 60950, EN 61000-3-2

Packing Units

• Unit Type of Package 1: PCE

• Number of Units in Package 1: 1

• Package 1 Height: 34.7 cm

• Package 1 Width: 98 cm

• Package 1 Length: 60.3 cm

• Package 1 Weight: 63.64 kg
