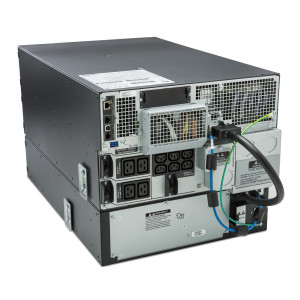

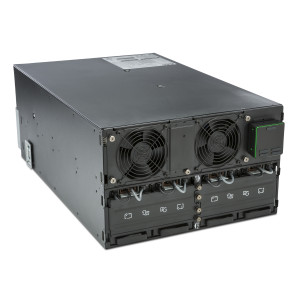

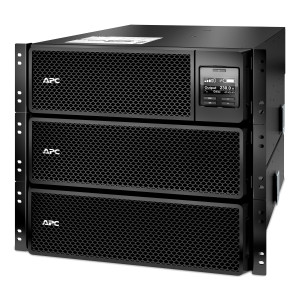

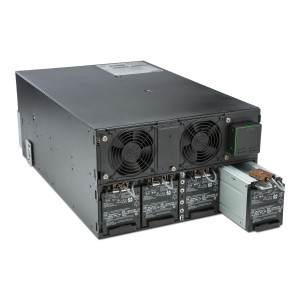

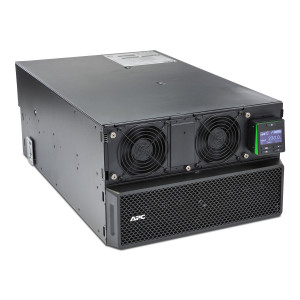

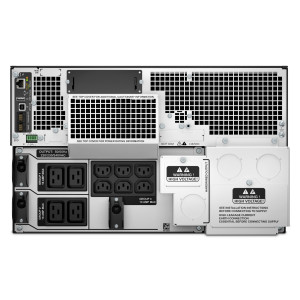

APC Smart-UPS SRT 8000VA RM 230V SRT8KRMXLI apc SRT8KRMXLI

APC Smart-UPS SRT 8000VA RM 230V SRT8KRMXLI

Specifications:

Main

• Main Input Voltage: 220 V AC 1 phase, 230 V AC 1 phase, 240 V AC 1 phase, 380 V AC 3 phases, 400 V AC 3 phases, 415 V AC 3 phases

• Product or component type: Uninterruptible power supply (UPS)

• Other Input Voltage: 220 V, 240 V, 380 V, 415 V

• Main Output Voltage: 220 V 1 phase, 230 V 1 phase, 240 V 1 phase

• Other Output Voltage: 220 V, 240 V

• Rated power in W: 8000 W

• Rated power in VA: 8000 VA

• output connection type: 6 IEC 60320 C13, 3 IEC Jumpers, 4 IEC 60320 C19

• Output connector type: Hard wire 3-wire (H N + E) for 1 zone(s)

• Number of rack unit: 6U

• Provided equipment: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card

• Range of product: Smart-UPS On-Line

Complementary

• Battery type: Lead-acid internal

• UPS connectivity: Serial port, USB port, Embedded network management card 3

• Mounting mode: Rack-mounted with included kit

Batteries & Runtime

• Battery type: Lead-acid battery

• Battery voltage: +/- 192 V (split battery referenced to neutral)

• Extended runtime: 1

• Number of battery filled slots: 0

• Battery recharge time: 1.5 h

• Number of battery replacement quantity: 2

• Battery life: 3…5 year(s)

• Replacement battery: APCRBC140

• Battery charger power: 876 W rated

General

• Number of power module filled slots: 0

• Number of power module free slots: 0

• product web sub-family: High density

• Redundant: No

• UPS type: Double conversion online

Physical

• Colour: Black

• Height: 263 mm

• Width: 432 mm

• Depth: 715 mm

• Net weight: 111.82 kg

• Mounting location: Front

• Mounting preference: No preference

• Mounting mode: Rack-mounted

• Two post mountable: 0

• USB compatible: Yes

Input

• Input voltage limits: 100...275 V adjustable (half load), 173...476 V adjustable (half load)

• Number of input connectors: 1 hard wire 3-wire (1P + N + E), 1 hard wire 5-wire (3P + N + E)

• Network frequency: 40...70 Hz auto-sensing

Output

• Bypass type: Internal bypass (automatic and manual)

• Crest factor: 3 : 1

• Harmonic distortion: Less than 2 %

• Maximum configurable power in VA: 8000 VA

• Maximum configurable power in W: 8000 W

• Wave type: Sine wave

• Output frequency: 50/60 Hz +/- 3 Hz sync to mains

Conformance

• Product certifications: CE, EAC, IRAM, RCM, VDE

• Marking: CE Mark

• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Communications & Management

• Emergency power off: Yes

• Free slots: 1

• Preinstalled device: Network management card 3 with environmental monitoring

• Alarm: Audible and visible alarms : prioritized by severity

Surge Protection and Filtering

• Surge energy rate: 480 J

Packing Units

• Unit Type of Package 1: PCE

• Number of Units in Package 1: 1

• Package 1 Height: 46.1 cm

• Package 1 Width: 60 cm

• Package 1 Length: 100 cm

• Package 1 Weight: 130 kg
