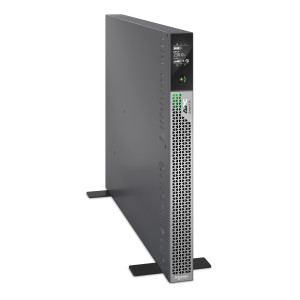

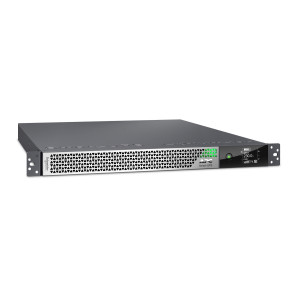

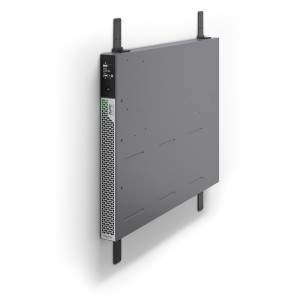

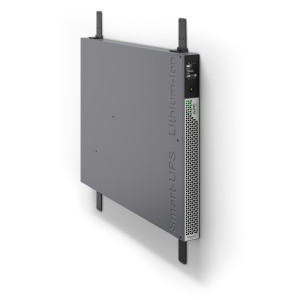

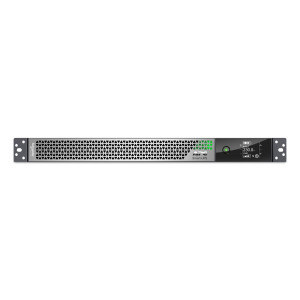

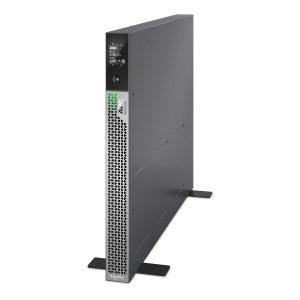

APC Smart-UPS Ultra On-Line 3000VA Lithium-ion Rack/Tower SRTL3KRM1UIC apc SRTL3KRM1UIC

APC Smart-UPS Ultra On-Line, 3000VA, Lithium-ion, Rack/Tower 1U, 230V, 3x C13, 2x C19 IEC outlets, SmartConnect, Extended runtime, W/rail kit SRTL3KRM1UIC

Specifications:

Main

• Main Input Voltage: 230 V AC 1 phase

• Product or Component Type: Uninterruptible power supply (UPS)

• Other Input Voltage: 230 V

• Main Output Voltage: 230 V AC 1 phase

• Other Output Voltage: 230 V

• Kw Rating: 3000 W

• Rated power in VA: 3000 VA

• Input Connection Type: BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P

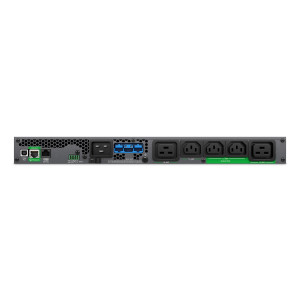

• output connection type: 3 IEC 60320 C13, 2 IEC 60320 C19

• Number of rack unit: 1U

• Cable length: 7.9 ft (2.4 m)

• Number of cables: 1

• Battery Type: Li-Ion (Lithium Ion)

• Provided equipment: RJ45 Cable, USB cable, Safety guide, Rack Mounting brackets, Rack Mounting support rails, Wall Mounting Brackets, Stabilization feet, Screws

• Range of Product: Smart-UPS Ultra

Complementary

• Software package: SmartConnect software for remote power monitoring feature availability varies by terms of use

• Battery Size: Li-Ion (Lithium Ion) internal included

• UPS connectivity: Serial port, USB port, SmartConnect port

• Mounting mode: Rack/tower convertible with included kit

Batteries & Runtime

• Typical recharge time: 1.5 h

• RBC Quantity: 1

• Battery Voltage: 50 V

• Battery Charge Power (Watts): 448 W

• Battery design life: 8…10 year(s)

• Battery life: 8…10 year(s)

• Replacement battery: APCRBC173-LI

• Extendable Run Time: 1

General

• product web sub-family: High density

• Redundant: No

Physical

• Color: Silver grey

• Height: 1.7 in (43 mm)

• Width: 17.008 in (432 mm)

• Depth: 22.05 in (560 mm)

• Net Weight: 35.05 lb(US) (15.9 kg)

• Mounting preference: No preference

• Mounting Mode: Rack-mounted with kit, Tower-mounted with kit

• Two post mountable: 1

• USB compatible: Yes

• Mounting position: Horizontal, Vertical

Input

• Input Frequency: 50/60 Hz auto-sensing

• Efficiency at full load: 160...275 V adjustable (half load)

Output

• Max Configurable Power (Watts): 3000 W

• Output frequency: 50/60 Hz +/- 3 Hz sync to mains

• Crest factor: 3 : 1

• Topology: On-Line

• Waveform Type: Sine wave

• Output Voltage THD: < 2% at 100% linear load and < 5% at 100% non-linear load

• Bypass type: Internal Bypass (Automatic and Manual)

• Efficiency at full load: 98 %

• Maximum configurable power in VA: 3000 VA

Conformance

• Product Certifications: CE, UKCA, UK PSTI

• Marking: CE Mark, UKCA

• Standards: EN/IEC 62040-1, EN/IEC 61000-4-8, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-3 level 3

Communications & Management

• Control panel: Touch Screen LCD User Interface

• Alarm: Audible and visible alarms : prioritized by severity

• Emergency Power Off (EPO): Yes

• Communication port support: SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use, RJ45: port monitoring, USB: port monitoring



Surge Protection and Filtering

• Surge energy rating: 1600 J

Ordering and shipping details

• GTIN: 731304573555

Packing Units

• Unit Type of Package 1: PCE

• Nbr. of units in pkg.: 1

• Package 1 Height: 10.9 in (27.8 cm)

• Package 1 Width: 22.2 in (56.4 cm)

• Package 1 Length: 30.08 in (76.4 cm)

• Package weight(Lbs): 53.4 lb(US) (24.2 kg)
