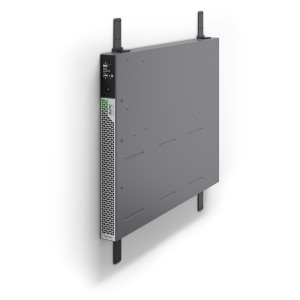

APC Smart-UPS Ultra On-Line 3000VA Lithium-ion Rack/Tower SRTL3KRM1UWC apc SRTL3KRM1UWC

Specifications:

Main

• Main Input Voltage: 208 V AC 1 phase, 240 V AC 1 phase

• Product or Component Type: Uninterruptible power supply (UPS)

• Other Input Voltage: 230 V

• Main Output Voltage: 208 V AC 1 phase, 240 V AC 1 phase

• Other Output Voltage: 208...240 V

• Kw Rating: 3000 W

• Rated power in VA: 3000 VA

• Input Connection Type: BS1363A British

• output connection type: 3 IEC 60320 C13, 2 IEC 60320 C19

• Number of rack unit: 1U

• Cable length: 7.9 ft (2.4 m)

• Number of cables: 1

• Battery Type: Li-Ion (Lithium Ion)

• Provided equipment: RJ45 Cable, Range of Product, Smart-UPS Ultra

Complementary

• Software package: SmartConnect software for remote power monitoring feature availability varies by terms of use

• Battery Size: Li-Ion (Lithium Ion) internal included

• UPS connectivity: Serial port, USB port, SmartConnect port

• Mounting mode: Rack-mounted with included kit

• Batteries & Runtime

• Typical recharge time: 1.5 h

• RBC Quantity: 1

• Battery Voltage: 50 V

• Battery Charge Power (Watts): 448 W

• Extendable Run Time: 1

• Replacement battery: APCRBC173-LI

General

• product web sub-family: High density

• Redundant: No

Physical

• Color: Silver grey

• Height: 1.7 in (43 mm)

• Width: 17.008 in (432 mm)

• Depth: 22.05 in (560 mm)

• Net Weight: 35.05 lb(US) (15.9 kg)

• Mounting preference: No preference

• Mounting Mode: Rack-mounted with kit

• Two post mountable: 1

• USB compatible: Yes

Input

• Input Frequency: 50/60 Hz auto-sensing

• Efficiency at full load: 160...275 V adjustable (half load)

Output

• Max Configurable Power (Watts): 3000 W

• Output frequency: 50/60 Hz +/- 3 Hz sync to mains

• Crest factor: 3 : 1

• Topology: On-Line

• Waveform Type: Sine wave

• Bypass type: Internal Bypass (Automatic and Manual)

• Maximum configurable power in VA: 3000 VA

Conformance

• Product Certifications: CE

• Marking: CE Mark

• Standards: EN/IEC 62040-1

• Communications & Management

• Free slots: 0

• Control panel: Touch Screen LCD User Interface

• Alarm: Audible and visible alarms : prioritized by severity

• Emergency Power Off (EPO): Yes

• Communication port support: SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use

Ordering and shipping details

• GTIN: 731304573524

Packing Units

• Unit Type of Package 1: PCE

• Nbr. of units in pkg.: 1

• Package 1 Height: 10.9 in (27.8 cm)

• Package 1 Width: 22.2 in (56.4 cm)

• Package 1 Length: 30.08 in (76.4 cm)

• Package weight(Lbs): 53.4 lb(US) (24.2 kg)
