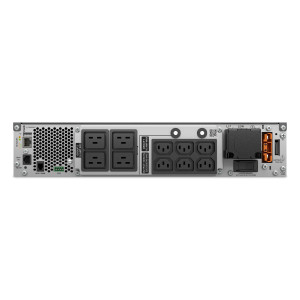

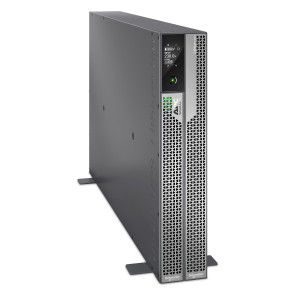

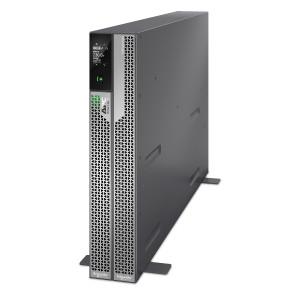

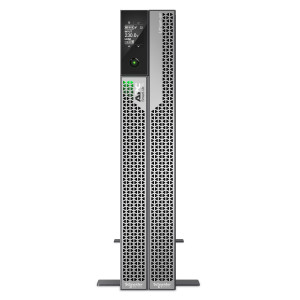

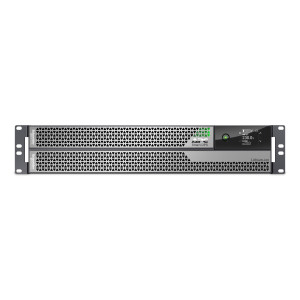

APC Smart-UPS Ultra On-Line 5000VA Lithium-ion Rack/Tower SRTL5KRM2UI apc SRTL5KRM2UI

Specifications:

Main

• Main Input Voltage: 230 V AC 1 phase

• Product or component type: Uninterruptible power supply (UPS)

• Other Input Voltage: 220 V

• Main Output Voltage: 230 V AC 1 phase

• Other Output Voltage: 220 V

• Rated power in W: 5000 W

• Rated power in VA: 5000 VA

• output connection type: 6 IEC 60320 C13, 4 IEC 60320 C19

• Number of rack unit: 2U

• Cable length: 3.05 m

• Battery type: Li-Ion (Lithium-Ion)

• Provided equipment: 1 CD (software and documentation), USB cable, Front cover, Earth terminal block, Temperature sensor, Stabilization feet, Rack mounting hardware

• 2P-3P connector, 2 x C13-C14 power cord, Break out panel, Rail splice
  Range of product: Smart-UPS Ultra

Complementary

• Battery type: Li-Ion (Lithium-Ion) internal included

• UPS connectivity: Serial port, USB port, Embedded network management card 3

• Mounting mode: Rack/tower convertible with included kit

Batteries & Runtime

• Number of battery filled slots: 0

• Number of battery free slots: 0

• Battery recharge time: 1.5 h

• Number of battery replacement quantity: 1

• Battery voltage: 180 V

• Battery charger power: 600 W rated

• Battery life: 5…10 year(s)

• Extended runtime: 1

General

• product web sub-family: High density

• Number of power module free slots: 0

• Number of power module filled slots: 0

• Redundant: No

Physical

• Colour: Silver grey

• Height: 86 mm

• Width: 432 mm

• Depth: 701 mm

• Net weight: 29.2 kg

• Mounting location: Front

• Mounting preference: No preference

• Mounting mode: Rack-mounted with kit, Tower-mounted with kit

• Two post mountable: 0

• USB compatible: Yes

• Mounting position: Horizontal, Vertical

Input

• Network frequency: 40...70 Hz auto-sensing

• Number of input connectors: 1 hard wire 3-wire (1P + N + E)

• Input voltage limits: 180...275 V adjustable (half load)

Output

• Maximum configurable power in W: 5000 W

• Harmonic distortion: Less than 2 %

• Output frequency: 50/60 Hz +/- 3 Hz sync to mains

• Crest factor: 3 : 1

• UPS type: Double conversion online

• Wave type: Sine wave

• Bypass type: Internal bypass (automatic and manual)

• Full load runtime: 00:05:00 5000 W

• Half load runtime: 00:12:00 2500 W

• Maximum configurable power in VA: 5000 VA

Conformance

• Product certifications: CE, UKCA, EN/IEC 62040-1

• Marking: CE Mark, UKCA

•


Communications & Management

• Free slots: 0

• Alarm: Audible and visible alarms : prioritized by severity

• Emergency power off: Yes



Surge Protection and Filtering

• Surge energy rate: 1260 J

Packing Units

• Unit Type of Package 1: PCE

• Number of Units in Package 1: 4

• Package 1 Height: 39.2 cm

• Package 1 Width: 58.5 cm

• Package 1 Length: 98.4 cm

• Package 1 Weight: 38.5 kg
