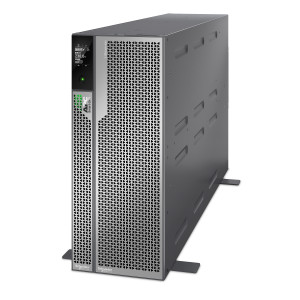

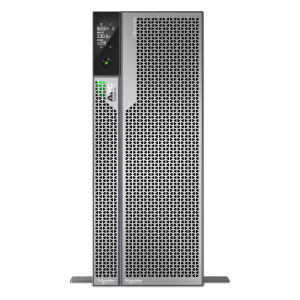

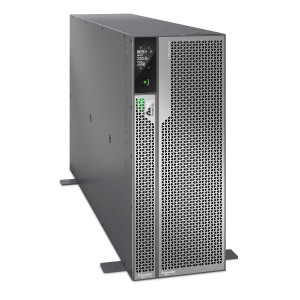

APC Smart-UPS Ultra On-Line 8000VA Lithium-ion 4U SRTL8KRM4UI apc SRTL8KRM4UI

Specifications:

Main

• Main Input Voltage: 220 V AC 1 phase

• Product or component type: Uninterruptible power supply (UPS)

• Other Input Voltage: 220...240 V

• Main Output Voltage: 220 V AC 1 phase

• Other Output Voltage: 220/230/240 V

• Rated power in W: 8000 W

• Rated power in VA: 8000 VA

• Input Connection Type: Hard Wire 3-wire 46 A

• output connection type: 6 IEC 60320 C13, 6 IEC 60320 C19

• Output connector type: Hard wire 3-wire (1P + N + E) 1

• Number of rack unit: 4U

• Number of cables: 1

• Battery type: Li-Ion (Lithium-Ion)

• Provided equipment: Temperature probe, USB cable, Rack mounting hardware, Strain relief, Stabilization feet

• Range of product: Smart-UPS Ultra
  Battery type: Li-Ion (Lithium-Ion) internal included

• UPS connectivity: Serial port, USB port, Available expansion slot

• Mounting mode: Rack/tower convertible with included kit

Batteries & Runtime

• Number of battery filled slots: 0

• Number of battery free slots: 0

• Battery recharge time: 1.5 h

• Number of battery replacement quantity: 2

• Battery voltage: 180 V

• Battery charger power: 1200 W rated

• Battery life: 5…10 year(s)

• Extended runtime: 1

General

• product web sub-family: High density

• Number of power module free slots: 0

• Redundant: No

Physical

• Colour: Silver grey

• Height: 175 mm

• Width: 432 mm

• Depth: 832 mm

• Net weight: 55 kg

• Mounting location: Front

• Mounting preference: Lower

• Mounting mode: Rack-mounted with kit, Tower-mounted with kit

• USB compatible: Yes

• Mounting position: Horizontal, Vertical

Input

• Network frequency: 40...70 Hz auto-sensing

• Number of input connectors: 1 hard wire 3-wire (1P + N + E)

Output

• Maximum configurable power in W: 8000 W

• Harmonic distortion: Less than 5 %

• Output frequency: 50/60 Hz +/- 3 Hz sync to mains

• Crest factor: 3 : 1

• UPS type: Double conversion online

• Wave type: Sine wave

• Bypass type: Internal bypass (automatic and manual)

• Full load runtime: 00:07:00 8000 W

• Half load runtime: 00:15:00 4000 W

• Maximum configurable power in VA: 8000 VA

Conformance

• Product certifications: VDE

• Marking: CE Mark, UKCA

• Standards: EN/IEC 62040-1, IEC 62040-2, EN/IEC 62040-2

Communications & Management

• Free slots: 1

• Preinstalled device: Network management card with environmental monitoring

• Control panel: Multifunction LCD status and control console

• Alarm: Audible and visible alarms : prioritized by severity

• Emergency power off: Yes



Surge Protection and Filtering

• Surge energy rate: 1410 J

Packing Units

• Unit Type of Package 1: PCE

• Number of Units in Package 1: 1

• Package 1 Height: 63 cm

• Package 1 Width: 65 cm

• Package 1 Length: 100 cm

• Package 1 Weight: 88.5 kg
