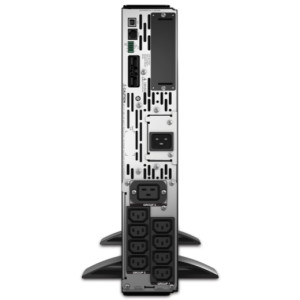

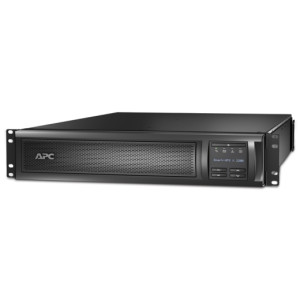

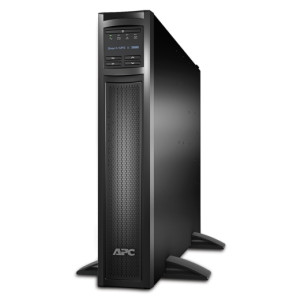

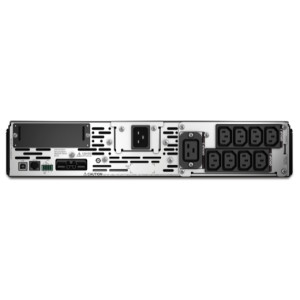

APC Smart-UPS X 3000VA - SMX3000RMHV2U apc SMX3000RMHV2U

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime - SMX3000RMHV2U

Specifications:

Main

• Main Input Voltage: 208 V AC, 230 V AC

• Product or component type: Uninterruptible power supply (UPS)

• Other Input Voltage: 220...240 V

• Main Output Voltage: 208 V AC 1 phase, 230 V AC 1 phase

• Other Output Voltage: 208/220/240 V

• Rated power in W: 2700 W

• Rated power in VA: 3000 VA

• Input Connection Type: IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British

• output connection type: 8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19

• Battery type: Lead-acid battery

Batteries & Runtime

• Number of battery filled slots: 0

• Number of battery free slots: 0

• Battery recharge time: 3 h

• Number of battery replacement quantity: 1

• Battery charger power: 245 W rated

• Battery life: 3…5 year(s)

• Extended runtime: 1

General

• Number of power module free slots: 0

• Redundant: No

Physical

• Colour: Black

• Height: 85 mm

• Width: 432 mm

• Depth: 667 mm

• Net weight: 37.32 kg

• Mounting location: Front

• Mounting preference: Lower

• Mounting mode: Rack-mounted

• USB compatible: Yes

Input

• Network frequency: 50/60 Hz +/- 3 Hz auto-sensing

Output

• Output frequency: 50/60 Hz +/- 3 Hz sync to mains

• Crest factor: 3 : 1




Conformance

• Product certifications: CE, CSA, EAC, IRAM, RCM, VDE, UK PSTI

• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Communications & Management

• Free slots: 1

• Control panel: Multifunction LCD status and control console

• Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays

• Emergency power off: Yes



Surge Protection and Filtering

• Surge energy rate: 645 J

Packing Units

• Unit Type of Package 1: PCE

• Number of Units in Package 1: 1

• Package 1 Height: 24.3 cm

• Package 1 Width: 59.6 cm

• Package 1 Length: 86.9 cm

• Package 1 Weight: 45.36 kg
