TP-Link Archer TX55E AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter TP-LINK Archer TX55E

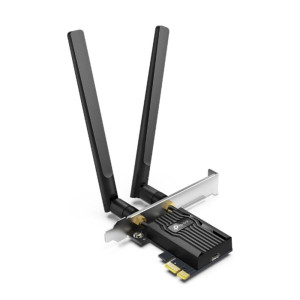

TP-Link Archer TX55E AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Product Features :

 * Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

 * Smoother Experience—75% lower latency ensures ultra-responsive gaming, uninterrupted video chatting, and seamless live streaming

 * Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router

 * Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability

 * Bluetooth 5.2—The latest Bluetooth technology achieves Faster Speed and Broader Coverage than the previous version

 * Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety

 * Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments

 * Backward Compatibility – Full support for 802.11ac/a/b/g/n standards

Product Specifications :

HARDWARE FEATURES

 * Dimensions : 3.7 x 4.8 x 0.8 in
                           (95.2 x 120.8 x 21.5 mm)

 * Antenna Type : Two High-Gain Dual Band Antennas

 * Chipset : Intel Wi-Fi 6 Chipset


BLUETOOTH FEATURES

 * Standards and Protocols : Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0

 * Interface : F_USB 2.0

WIRELESS FEATURES

 * Wireless Standards :

 - IEEE 802.11ax/ac/n/a 5 GHz

 - IEEE 802.11ax/n/g/b 2.4 GHz

 * Bluetooth : 5.2/5.0/4.2/4.0

 * WLAN Signal Rate :

5 GHz

 - 11ax: Up to 2402 Mbps(dynamic)

 - 11ac: Up to 1733 Mbps(dynamic)

 - 11n: Up to 300 Mbps(dynamic)

 - 11a: Up to 54 Mbps(dynamic)

2.4 GHz

 - 11ax: Up to 574 Mbps(dynamic)

 - 11n: Up to 300 Mbps(dynamic)

 - 11g: Up to 54 Mbps(dynamic)

 - 11b: Up to 11 Mbps(dynamic)

 * WLAN Reception Sensitivity :

5 GHz :

 - 11ax HT160：-56.25dBm

 - 11ax HT80: -59dBm

 - 11ax HT40: -62.25dBm

 - 11ax HT20: -65dBm

 - 11ac HT160：-62dBm

 - 11ac HT80: -65.5dBm

 - 11ac HT40: -69.75dBm

 - 11ac HT20: -73.75dBm

 - 11n HT40: -74.5dBm

 - 11n HT20: -77.5dBm

 - 11a 54Mbps: -77.75dBm

 - 11a 6Mbps: -94.5dBm

2.4GHz :

 - 11ax HT40: -60.75dBm

 - 11ax HT20: -63.75dBm

 - 11n HT40: -73dBm

 - 11n HT20: -76.25dBm

 - 11g 54Mbps: -76.5dBm

 - 11b 11Mbps: -89dBm


 * WLAN Transmit Power :

- 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)

 - 2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)

 * WLAN Modes : Infrastructure mode

 * Wireless Security : Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

 * Modulation Technology : DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

OTHERS

 * Certification : CE, FCC, RoHS

 * System Requirements : Windows 11/10(64-bit) only

 * Environment Operating Temperature: 0℃~40℃ (32℉~104℉)

 - Storage Temperature: -40℃~70℃ (-40℉~158℉)

 - Operating Humidity: 10%~90% non-condensing

 - Storage Humidity: 5%~90% non-condensing

What's in the Box :

 * Archer TX55E

 * Two High-Gain Antennas

 * Low-Profile Bracket

 * Standard Bluetooth Header Cable

 * Quick Installation Guide

 * Resource CD

Warranty : 1Year
