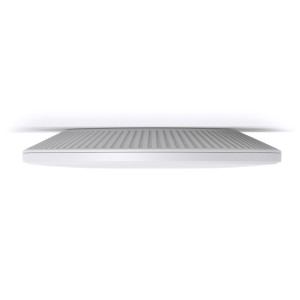

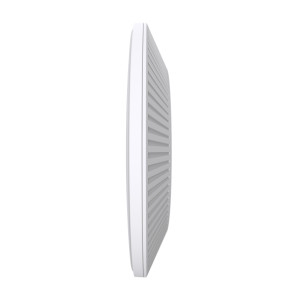

Omada BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point EAP773 Omada by TP-Link EAP773

HARDWARE FEATURES

Interface 1× 10G Ethernet Port

Button Reset

Power Supply 802.3at PoE or 12V/2.5A DC

Notice: Due to the software update, the power supply has been updated from 802.3bt to 802.3at.

Max. Power Consumption • 25.44 W (For PoE)

• 22.57 W (For DC)

Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

Antenna • 2.4 GHz: 2× 4.0 dBi

• 5 GHz: 2× 5.0 dBi

• 6 GHz: 2× 5.0 dBi

Bluetooth 1 × 4.0 dBi, Bluetooth 5.2

*Firmware update may be required.

Mounting Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES

Coverage 140㎡(1500 ft²)§

Concurrent Clients 380+**

Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be

Frequency 6 GHz, 5 GHz, and 2.4 GHz

Signal Rate 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)†

Wireless Functions • MLO‡

• 4K-QAM‡

• Seamless Roaming(802.11k/v/r)

• MU-MIMO (2*2 DL/UL MU-MIMO)‡

• HE320‡

• Mesh△

• BSS Coloring‡

• OFDMA‡

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDS:24(8 on each band)

• Wireless Schedule

• Reboot Schedule

• QoS(WMM)

• Rate Limit

• Static IP/Dynamic IP

• RADIUS Accounting

• MAC Authentication

Wireless Security • Captive Portal Authentication△

• Access Control

• Maximum number of MAC Filter: 4,000

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power < 25 dBm (2.4 GHz)

< 25 dBm (5 GHz)

< 23 dBm (6 GHz)

Management Features

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Yes

Web-based Management Yes
