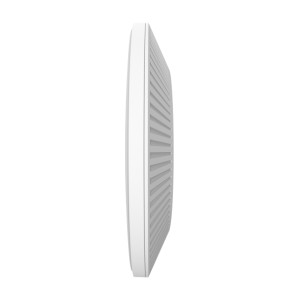

Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point EAP783 Omada by TP-Link EAP783

Hardware Features

• Interface: 2× 10G Ethernet Ports (20G Aggregation Speed†)

• Button: Reset

• Power Supply:

• 802.3bt PoE++

• 12V DC

• Note: Power adapter is not included.

• Max. Power Consumption: 39W

• Dimensions (W x D x H): 11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm)

• Antenna: Internal Omni

• 2.4 GHz: 4× 4 dBi

• 5 GHz: 4× 5.5 dBi

• 6 GHz: 4× 5 dBi

• Bluetooth: V5.2

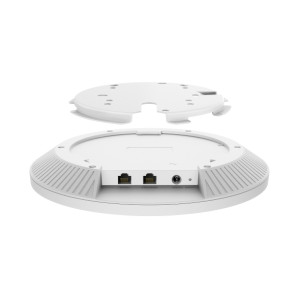

• Mounting: Ceiling / Wall Mounting (Kits Included)

Wireless Features

• Coverage: 200㎡ (2150 ft²) §

• Concurrent Clients: 760+ **

• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be

• Frequency: 6 GHz, 5 GHz, and 2.4 GHz

• Signal Rate:

• 6 GHz: Up to 11520 Mbps

• 5 GHz: Up to 8640 Mbps

• 2.4 GHz: Up to 1376 Mbps

• Wireless Functions: MLO, 4K-QAM, MU-MIMO (4x4 MU-MIMO DL/UL), HE320 (320 MHz Bandwidth)‡, Mesh§, Seamless Roaming (802.11k/v/r)△, Automatic Channel Selection and Power Adjustment*, BSS Coloring, UL/DL OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs, Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, MAC Authentication, Static IP/Dynamic IP.

• Wireless Security: PPSK, VLAN, Access Control, Rogue AP Detection, Captive Portal Authentication△, Maximum number of MAC Filter: 4,000, Wireless Isolation between Clients, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE.

• Transmission Power: FCC: <28 dBm (2.4 GHz & 5G & 6 GHz).

Management Features

• Omada App: Yes

• Restore & Backup: Yes

• Firmware update via Web: Yes

• NTP: Yes

• Centralized Management:

• Omada Hardware Controller (OC300 / OC200)

• Omada Software Controller

• Omada Cloud-Based Controller

• Cloud Access: Yes (Require the use of Omada controllers).

• Email Alerts: Yes

• LED ON/OFF Control: Yes

• Management MAC Access Control: Yes

• SNMP/SSH: Yes

• Web-based Management: Yes

Others

• Net Weight: 1384.6g

• Certification: CE, FCC, RoHS, IC

• Package Content:

• EAP783

• Installation Guide

• Ceiling/Wall Mounting Kits
