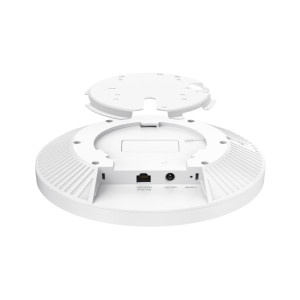

Omada BE15000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point EAP787 Omada by TP-Link EAP787

HARDWARE FEATURES

Interface 1× 10G/2.5G Ethernet Port

Button Reset

Power Supply 802.3bt/at PoE or 12V/2.5A DC

Max. Power Consumption • 29 W (For PoE);

• 24.5W (For DC)

Dimensions ( W x D x H ) 8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm)

Antenna • 2.4 GHz: 2× 4.0 dBi

• 5 GHz: 4× 5.0 dBi

• 6 GHz: 2× 5.0 dBi

Bluetooth 1 × 5 dBi (peak gain), Internal antenna module

*Firmware update may be required.

Mounting Ceiling / Wall / Junction Box Mounting (Kits Included)

WIRELESS FEATURES

Coverage 2050 ft² (190 m²)*

Concurrent Clients 510+**

Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be

Frequency 6 GHz, 5 GHz, and 2.4 GHz

Signal Rate 688 Mbps (2.4 GHz) + 8648 Mbps (5 GHz) + 5765 Mbps (6 GHz)†

Wireless Functions • 320 MHz Bandwidth‡

• MLO‡

• 4K-QAM‡

• Multi-RUs‡

• Seamless Roaming(802.11k/v/r)

• MU-MIMO‡

• Mesh△

• BSS Coloring‡

• OFDMA‡

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDS:24(8 on each band)

• Wireless Schedule

• Reboot Schedule

• QoS(WMM)

• Rate Limit

• Static IP/Dynamic IP

• RADIUS Accounting

• MAC Authentication

Wireless Security • Captive Portal Authentication△

• Access Control

• Mac Filter

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power 4-25 dBm (2.4 GHz)

7-29 dBm (5 GHz, U-NII-1 & U-NII-3)

7-26 dBm (5 GHz, U-NII-2A)

7-24 dBm (5 GHz, U-NII-2C)

4-23 dBm (6 GHz)

Management Features

Omada App Yes

Centralized Management • Omada Central (Cloud-Based)

• Omada Hardware Controller

• Omada Software Controller

Cloud Access Yes. Require the use of an Omada controller.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Yes

Web-based Management Yes

OTHERS

Certification CE, FCC, RoHS, IC

Package Content • EAP787

• Installation Guide

• Ceiling/Wall/Junction Box Mounting Kit

Note: Power Adapter is NOT included.

Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing;
